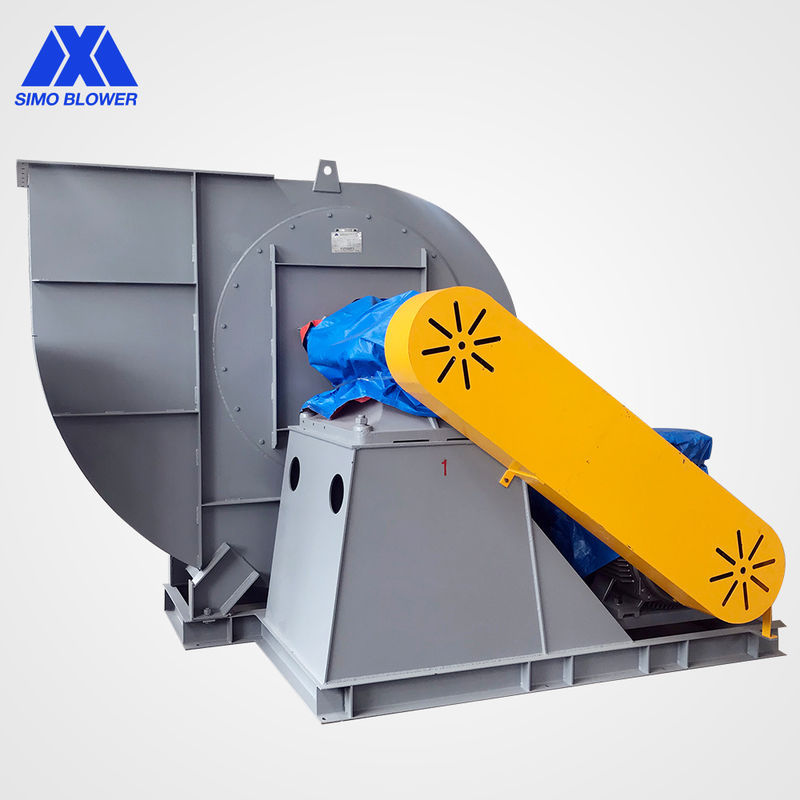

Coal-Fired Boiler System Supporting Ventilator Induced Draft Fan

Name: Coal-Fired Boiler System Supporting Ventilator Induced Draft Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: Ventilatore 5-10 di SIMO
Price: 2,650.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Henan China
Marca:	SIMO
Certificazione:	CE, ISO9001:2008,TUV
Numero di modello:	Ventilatore 5-10 di SIMO

Informazione dettagliata

Luogo di origine:

Henan China

Marca:

SIMO

Certificazione:

CE, ISO9001:2008,TUV

Numero di modello:

Ventilatore 5-10 di SIMO

Tipo corrente:

Fonte di energia:

Motore a cambio a tre fasi

Lama:

In avanti / arretrato / all'indietro curvo

Cuscinetto di raffreddamento:

Raffreddamento ad aria o raffreddamento dell'acqua circolante

rumore:

Opzionale

Prova della ventola:

Regolazione blancing dinamica

Caratteristiche:

Grande volume, alta efficienza

Montaggio:

Libero standard

Garanzia:

1 anno

Evidenziare:

High Light

Evidenziare:

coal-fired boiler ventilator fan

induced draft fan for boilers

boiler system draft fan

Trading Information

Quantità di ordine minimo:

1 set

Prezzo:

300-5000 USD

Imballaggi particolari:

Caso di legno che imballa, imballaggio d'acciaio dell'esportazione del pallet

Tempi di consegna:

15-35 giorni

Termini di pagamento:

T/T, L/C, termine di pagamento è negoziabile

Capacità di alimentazione:

500 set al mese

Descrizione di prodotto

Coal-Fired Boiler System Supporting Ventilator Induced Draft Fan

This heavy-duty Induced Draft (ID) Fan is a critical component engineered for coal-fired boiler systems. It is designed to reliably handle high-temperature, abrasive flue gases containing fly ash and corrosive elements. Built with wear-resistant materials and robust construction, the fan ensures efficient boiler draft control, optimal combustion, and safe operation.

Performance Specifications

Parameter	Range	Unit
Pressure range	1638 - 10707	Pa
Air flow range	9890 - 709000	m³/h
Impeller diameter	710 - 1600	mm
Speed	480 - 1450	rpm
Material (Blower fan casing)	Q235, Q345, stainless steel	Design as special
Material (Blower fan shaft)	45# steel, Q304, SS304, SS316L
Material (Blower fan impeller)	Q304, 12Cr1Mov, 15Crmov, 15MnV
Medium	10 - 120°C, Dustiness <80 g/m³	Incombustible
Motor	Siemens, ABB, WN, SIMO, LA	IP 54,55,56, 3 phase

Optional Components

System base frame
Protective screening
Silencer
Inlet & Outlet pipeline compensator
Inlet & Outlet flange
Damper
Electric actuator
Shock isolator
Diaphragm coupling
Fluid coupling
Motor rain cover
Temperature sensor
Vibrating sensor
Soft starter
Inverter
Special Electrical Motor
System monitoring Instrument
Lube system
Overhead lube tank

Advantages and Features

This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.

Frequently Asked Questions

1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc. If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company's pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
