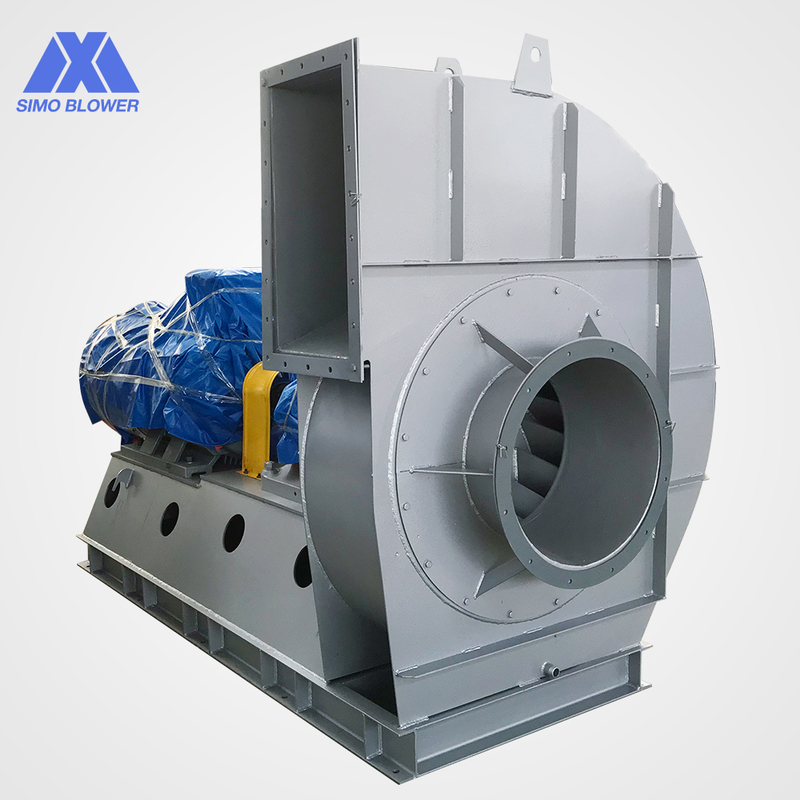

30kw Variable Frequency Speed Regulation Large Flow High Efficiency Centrifugal Fan/Blower Fan
Introduction
This 30kW Variable Frequency Speed Regulation Centrifugal Fan is engineered for high-efficiency, large-flow industrial applications. Equipped with an integrated frequency converter, it enables precise motor speed and airflow control to match real-time system demands, significantly reducing energy consumption. Designed for durability and performance, it delivers powerful yet adjustable ventilation, exhaust, or material handling capabilities while maintaining low noise levels. Ideal for factories, HVAC systems, and processing plants, this fan offers smart, adaptable airflow solutions with enhanced operational economy and reliability.
Performance
| Coal-Fired Boiler System Supporting Ventilator Induced Draft Fan |
| Performance |
Pressure range |
1638-10707 Pa |
|
Air flow range |
9890-709000 m³/h |
|
Impeller diameter |
710-1600 mm |
|
Speed |
480-1450 rpm |
| Material |
Blower fan casing |
Q235, Q345, stainless steel (Design as special) |
|
Blower fan shaft |
45# steel, Q304, SS304, SS316L |
|
Blower fan impeller |
Q304, 12Cr1Mov, 15Crmov, 15MnV |
| Medium |
|
10-120°C, Dustiness<80 g/m³ (incombustible) |
| Motor |
|
Siemens, ABB, WN, SIMO, LA (IP 54,55,56, 3 phase) |
| Optional components: System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. |
Advantages and Features
- This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
- The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
- V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
- Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
- The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc. If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company's pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
Our Advantages
Pursue excellent quality, make perfect product!
If you have a need for a fan, please provide the operating requirements and parameter information, and we will provide you with professional fan solutions.
